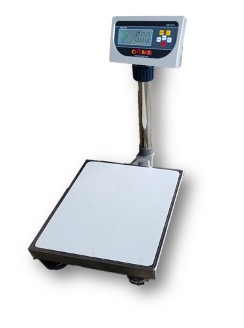

ECF-100

Economical Platform Scale

PATTERN APPROVAL MODEL : GMS-ATP100
PATTERN APPROVAL No : ATS-0053-19

Description

- Pattern Approval Certificate

- Technical Specification

Structural Features:-

Top pan size: 300mm x 400mm

Material:

#430 stainless steel top pan

#201 stainless iron round pole

Welded internal square tubes in spray painted gloss finish (grey/blue)

Others:

Adjustable round rubber foot

Technical Parameters:-

NMIM Accuracy Class: III

Display: 6-digit 30mm LCD with backlight or 38mm LED in green

Power supply: 6v rechargeable battery with 12v adaptor

Load cell: Mavin NA4 100kg / 150kg / 200kg

Optional GMS Indicators:-

GMS3119P-B (LCD Display with Backlight)

GMS3119P-G (Green LED Display)
